Best Aftermarket Wheels for Toyota GR86 and BRZ: Fitment Guide
TL;DR
The best wheels for GR86 and BRZ are lightweight alloy options in 17×9 or 18×9.5 sizes with a +35 to +45 offset on the factory 5×100 PCD. Flow forged and multi-spoke cast alloys in the 7–8 kg per-wheel range unlock the most measurable handling and performance improvement for these naturally balanced sports cars.
In This Guide
Finding the best wheels for GR86 BRZ is one of the most rewarding upgrades you can make to either of these sports cars. Both the Toyota GR86 (ZN8) and Subaru BRZ (ZD8) share an identical chassis platform, which means fitment specs are the same — and the aftermarket wheel options are enormous. This guide covers factory fitment, recommended sizes, offset selection, and the wheel styles that deliver the best blend of looks and performance.
Why the GR86 and BRZ Are Perfect for Aftermarket Wheels
The GR86 and BRZ are lightweight rear-wheel-drive sports cars built for driver engagement. Both platforms benefit significantly from reducing unsprung mass — the weight that sits outside the suspension. Lighter wheels reduce rotational inertia, which improves acceleration, braking, and cornering response in measurable ways. According to Toyota Australia’s GR86 specifications, the second-generation (ZN8) weighs approximately 1,270 kg — a figure that makes every kilogram saved at each corner meaningful.
The factory steel wheels on base models and even the OEM alloys on higher trims leave considerable room for improvement in terms of weight, width, and aesthetics. Aftermarket alloys designed for the 5×100 bolt pattern are widely available, competitively priced in the Australian market, and can transform the visual presence and driving dynamics of both cars simultaneously.
Reducing unsprung weight by 2–3 kg per wheel — a realistic target with quality aftermarket alloys — delivers handling improvements equivalent to a significant suspension upgrade, without touching the chassis setup.
GR86 and BRZ Wheel Fitment Specifications
Both the Toyota GR86 ZN8 (2022+) and Subaru BRZ ZD8 (2022+) share identical wheel fitment specifications. Getting these numbers right is essential before selecting any aftermarket wheel. Here are the non-negotiable fitment parameters:
Stock Wheel Specifications
- Bolt Pattern (PCD): 5×100
- Centre Bore: 56.1 mm
- Factory Wheel Size (base): 17×7 ET+48
- Factory Wheel Size (GR Sport/Limited): 18×7.5 ET+48
- Factory Tyre Size (17-inch): 215/45R17
- Factory Tyre Size (18-inch): 215/40R18
These specifications are confirmed in the official Subaru Australia BRZ product specifications. The 5×100 bolt pattern is shared with many Subaru and Toyota performance vehicles from the same era, giving you an excellent breadth of aftermarket wheel choices.
Recommended Aftermarket Wheel Sizes
The GR86 and BRZ respond exceptionally well to wider wheels. Here are the most popular aftermarket sizing options used by Australian enthusiasts and track-day competitors:
- 17×9 ET+35 to ET+45 — Ideal entry-level upgrade; runs 235/45R17 tyres, noticeable grip improvement
- 18×9.5 ET+38 to ET+42 — Most popular track/street balance; pairs with 245/40R18 tyres
- 18×10 ET+30 to ET+38 — Aggressive street/track fitment; may require minor guard rolling or arch protection
- 17×8 ET+35 to ET+45 — Great budget-friendly upgrade with 225/45R17 tyres
Understanding how offset affects your fitment is crucial. If you’re new to these numbers, our guide on wheel offset, PCD and centre bore explains everything you need to know before ordering.

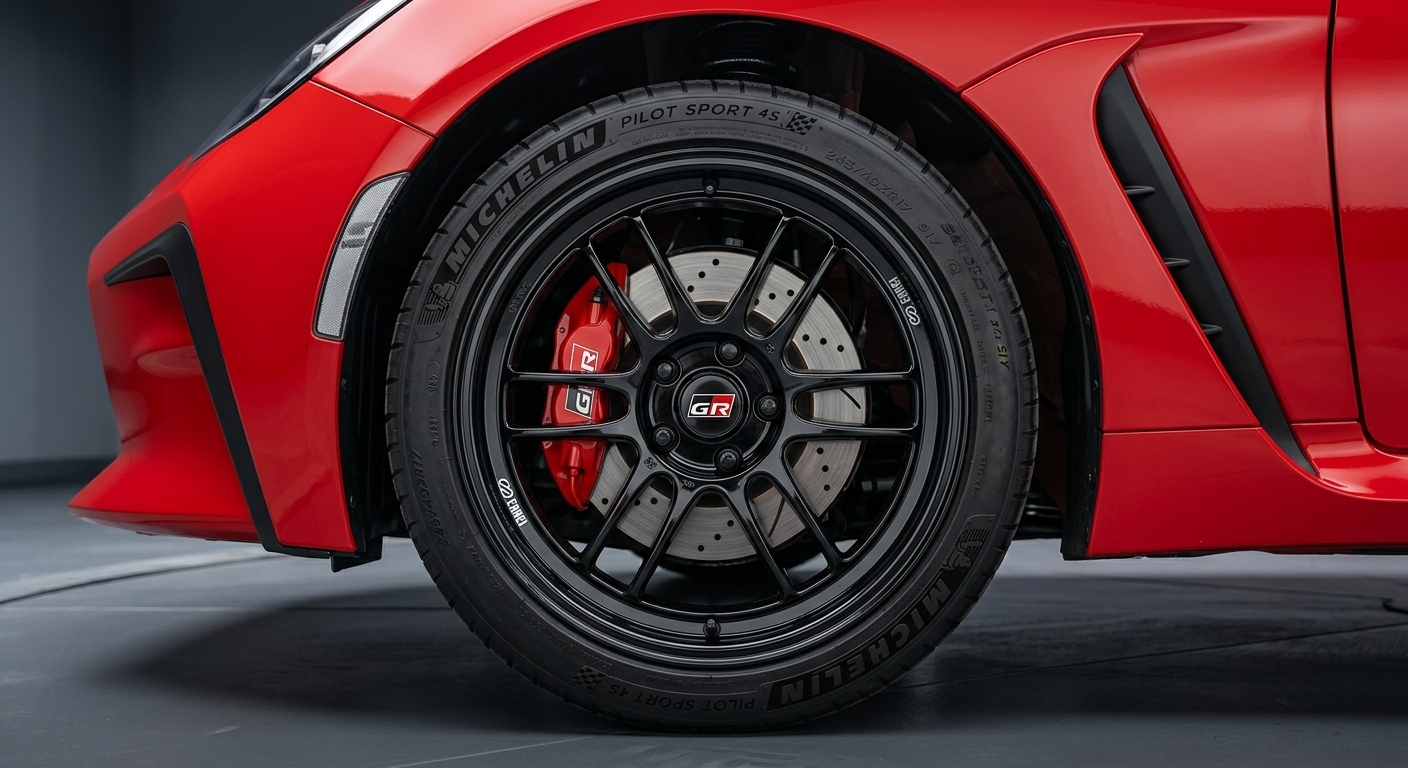

Best Wheel Styles for the GR86 and BRZ
Wheel construction type significantly affects both performance and price. For the GR86 and BRZ, three wheel categories are especially popular among Australian enthusiasts:
Flow Forged Wheels
Flow forged (also called flow formed or spun forged) wheels offer the best balance of weight, strength, and affordability. The barrel of the wheel is flow-formed under pressure, aligning the aluminium grain structure for superior tensile strength compared to fully cast wheels. For GR86 and BRZ owners wanting genuine performance gains without forged pricing, flow forged wheels are the definitive choice.
A quality flow forged 18×9.5 wheel typically weighs 8.5–10 kg, versus 11–13 kg for an equivalent cast alloy. At four corners, that’s a saving of 8–16 kg of unsprung weight — transformative for a car that weighs just 1,270 kg.
Cast Alloy Wheels
Cast alloy wheels are the most accessible entry point for aftermarket upgrades. Modern low-pressure casting techniques have significantly closed the weight gap with flow forged wheels at the budget end of the market. For road-focused GR86 and BRZ builds, quality cast alloy wheels in 17-inch sizing offer excellent value without compromising fitment accuracy.
Spoke Pattern Options for GR86 and BRZ
The GR86 and BRZ’s compact, angular styling works with almost every spoke pattern, but the most aesthetically popular choices are:
- 5-spoke Y-spoke: Classic sport car look, excellent brake cooling airflow, suits stock arch flares
- 10-spoke mesh: Aggressive visual weight, popular in gloss black and gunmetal finishes
- Split 10-spoke: Premium appearance, often associated with Japanese brand collaborations

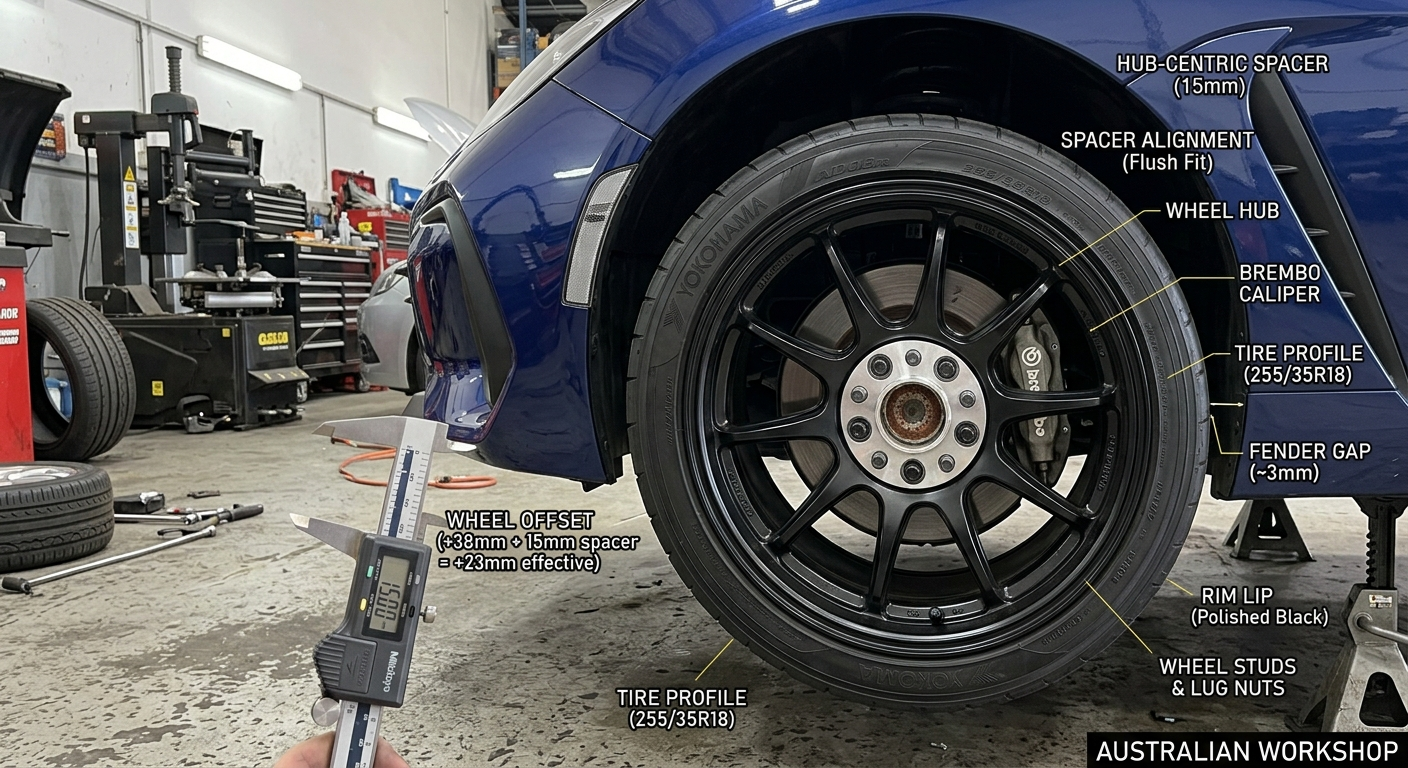

Choosing the Right Offset for GR86 and BRZ
Offset (ET) determines how far the wheel sits in or out from the hub face. For the GR86 and BRZ, the OEM offset of +48 pushes wheels relatively inward. Most aftermarket upgrades use a lower offset (e.g., +35 to +42) to push the wheel face outward, improving visual stance and widening the effective track width for improved cornering stability.
Key offset considerations for GR86 and BRZ:
- ET+45 to ET+48: Very safe, flush with OEM arch line, no guard contact risk
- ET+38 to ET+44: Slight poke, improved stance, fits 17-inch without any issues; 18-inch may need arch protection check
- ET+30 to ET+37: Aggressive fitment, check inner suspension clearance, may require guard rolling on wider setups
If you’re running a tyre profile wider than 235 on a 17-inch or 245 on an 18-inch, always verify clearance at full suspension droop and full steering lock. The GR86 and BRZ have good arch clearance out of the factory, but aggressively wide tyres will require a guard roll or flare kit.
Browse our full range of passenger wheels suitable for sports cars including the GR86 and BRZ, or explore complete wheel and tyre packages that take the guesswork out of pairing the right tyre to your new rims.
Tyre Sizing for Your GR86 and BRZ Wheel Upgrade
Selecting the correct tyre profile is as important as the wheel size. The GR86 and BRZ are IPCC-tuned for a specific rolling diameter — go too far outside that range and you’ll affect speedometer accuracy, stability control calibration, and potentially compliance with Australian Design Rules.
According to the Australian Government’s vehicle design regulation framework, modifications that alter rolling diameter beyond 15 mm from factory specification may require an engineering certificate in some states. Always confirm with your local transport authority before significant tyre size changes.
Recommended tyre pairings by wheel size:
- 17×8: 225/45R17 (OD: 634 mm) — very close to factory 215/45R17 (629 mm)
- 17×9: 235/45R17 (OD: 644 mm) or 245/40R17 (OD: 632 mm)
- 18×9: 235/40R18 (OD: 636 mm) or 245/40R18 (OD: 644 mm)
- 18×9.5: 245/40R18 (OD: 644 mm) — most popular track spec
- 18×10: 255/35R18 (OD: 628 mm) — aggressive, check arch clearance
Top Wheel Recommendations for GR86 and BRZ in Australia
When selecting the best wheels for GR86 BRZ in the Australian market, look for brands that offer hub-centric rings in 56.1 mm (matching the GR86 and BRZ’s centre bore) or wheels machined to that bore directly. Hub-centric fitment eliminates vibration and ensures load is transferred through the hub rather than the wheel bolts.
Here’s what to prioritise when evaluating specific wheels:
- Weight: Target under 9 kg for 18×9 or 18×9.5 in flow forged; under 11 kg in cast
- Load rating: Minimum 650 kg per wheel for street use; 700+ kg for track use
- Finish durability: Machine-cut or anodised finishes hold up to track use better than chrome or pure gloss
- JWL/VIA certification: Look for Japanese JWL standard markings — the gold standard for alloy wheel structural certification
- Australian market availability: Choose brands stocking in Australia to avoid long lead times and import duties
Popular style choices for GR86 and BRZ in Australia currently include gloss black multi-spoke designs, bronze/gold finishes for the JDM aesthetic, and matte gunmetal for a stealthy track look. Avoid chrome on a track-use car — it’s heavy, difficult to repair, and heat-affected chrome can delaminate near brake calipers.
Frequently Asked Questions
What is the bolt pattern (PCD) for the Toyota GR86 and Subaru BRZ?
Both the Toyota GR86 (ZN8) and Subaru BRZ (ZD8) use a 5×100 bolt pattern with a 56.1 mm centre bore. This PCD is shared with many Subaru and older Toyota performance vehicles, giving a wide range of compatible aftermarket wheels.
What offset should I run on my GR86 or BRZ for a flush fitment?
For a flush, street-legal fitment on stock-width guards, target ET+38 to ET+45 depending on wheel width. Wider wheels (9.5+ inches) pair best with ET+38 to ET+42. More aggressive setups running 10-inch widths may need ET+30 to ET+35 with guard modifications.
Do I need hub-centric rings for aftermarket wheels on GR86 and BRZ?
Yes — unless the aftermarket wheel is machined to exactly 56.1 mm centre bore, you will need hub-centric rings to fill the gap. Running without them causes vibration and places stress on wheel bolts rather than the hub, which is a safety concern at higher speeds.
Can I run 18×9.5 wheels on a stock GR86 without arch modification?
Yes, in most cases 18×9.5 with ET+40 and a 245/40R18 tyre fits within stock arches on the GR86 and BRZ without rubbing. However, fitment can vary with ride height. If you’re running any form of lowering spring or coilover, check clearance at full droop and full steering lock before confirming fitment.
Are flow forged wheels worth the extra cost over cast for a GR86?
For a GR86 or BRZ used on track days or performance driving events, flow forged wheels are strongly recommended. The weight saving (typically 1.5–2.5 kg per wheel over equivalent cast) reduces unsprung mass significantly, improving acceleration, braking and cornering response. For purely street use, quality cast alloys are a cost-effective alternative.
What tyre size pairs with 18×9.5 wheels on a GR86 or BRZ?
The most popular and widely recommended pairing is 245/40R18, which gives an overall diameter of approximately 644 mm — only 15 mm more than the factory 215/40R18 — keeping rolling diameter within safe tolerance for speedometer accuracy and stability control calibration.
